Approx Price:
Tube Size OD: 6mm, 8mm, 10mm, 12mm, 14mm, 15mm, 16mm, 18mm, 20mm, 22mm, 25mm, 28mm, 30mm, 35mm, 38mm, 42mm
Material: Carbon Steel, Stainless Steel (SS316), Brass
Fitting Type: Hydraulic Metric Tube to Female Connector Fitting
Thread Type: Female BSPP
Finish: Zinc Plated with Trivalent Passivation
Applications: Hydraulic, Pneumatic, High-pressure Applications
Hydraulic Straight Female Coupling |
|||||||||
 |
|||||||||

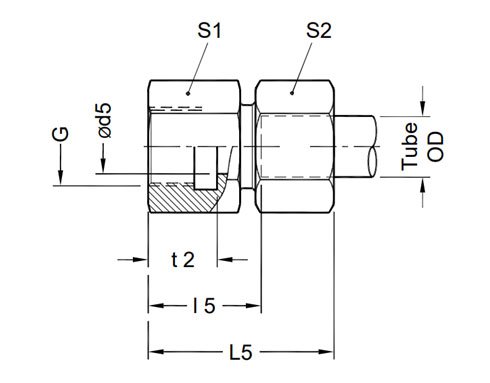

| Part No. | Series | Tube od | G | Ød5 | t 2 | l 5 | L5 | S1 | S2 |
| JI06PLG | Light L 250 bar |
6 | G 1/8 | 4 | 12 | 19 | 34.5 | 14 | 14 |
| JI08PLG | 8 | G 1/4 | 6 | 17 | 24 | 39 | 19 | 17 | |
| JI10PLG | 10 | G 1/4 | 8 | 17 | 25 | 40.5 | 19 | 19 | |
| JI12PLG | 12 | G 3/8 | 10 | 17 | 26 | 41 | 24 | 22 | |
| JI15PLG | 15 | G 1/2 | 12 | 20 | 31 | 47 | 27 | 27 | |
| JI18PLG | 160 bar | 18 | G 1/2 | 15 | 20 | 30.5 | 47.5 | 27 | 32 |
| JI22PLG | 22 | G 3/4 | 19 | 22 | 35.5 | 52.5 | 36 | 36 | |
| JI28PLG | 100 bar | 28 | G 1 | 24 | 24.5 | 38 | 56 | 41 | 41 |
| JI35PLG | 35 | G1.1/4 | 30 | 26.5 | 41 | 64 | 55 | 50 | |
| JI42PLG | 42 | G1.1/2 | 36 | 28.5 | 42.5 | 66 | 60 | 60 | |
| JI06PSG | Heavy S 630 bar |
6 | G 1/4 | 4 | 17 | 26 | 41.5 | 19 | 17 |
| JI08PSG | 8 | G 1/4 | 5 | 17 | 26 | 41 | 19 | 19 | |
| JI10PSG | 10 | G 3/8 | 7 | 17 | 26.5 | 43.5 | 24 | 22 | |
| JI12PSG | 12 | G 3/8 | 8 | 17 | 26.5 | 43 | 24 | 24 | |
| JI16PSG | 400 bar | 16 | G 1/2 | 12 | 20 | 31.5 | 50.5 | 30 | 30 |
| JI20PSG | 20 | G 3/4 | 16 | 22 | 34.5 | 57 | 36 | 36 | |
| JI25PSG | 25 | G 1 | 20 | 24.5 | 37.5 | 62.5 | 41 | 46 | |
| JI30PSG | 250 bar | 30 | G 1.1/4 | 25 | 26.5 | 42 | 70 | 55 | 50 |
| JI38PSG | 38 | G 1.1/2 | 32 | 28.5 | 43.5 | 75 | 60 | 60 | |
