Hydraulic Male Stud Coupling

Approx Price:

Tube OD Size: 6mm, 8mm, 10mm, 12mm, 14mm, 15mm, 16mm, 18mm, 20mm, 22mm, 25mm, 28mm, 30mm, 35mm, 38mm, 42mm
Material: Carbon Steel, Stainless Steel (SS316), Brass
Fitting Type: Hydraulic Male Stud Coupling Tube to Male BSP, NPT Thread With Elastomeric Seal
Thread Type: Male BSPP and Metric
Connector Type: Single Ferrule Bite Type Design
Applications: Hydraulic, Pneumatic, High-pressure Applications

Straight Male Stud Couplings Male BSPP (G) Thread with Elastomeric Seal

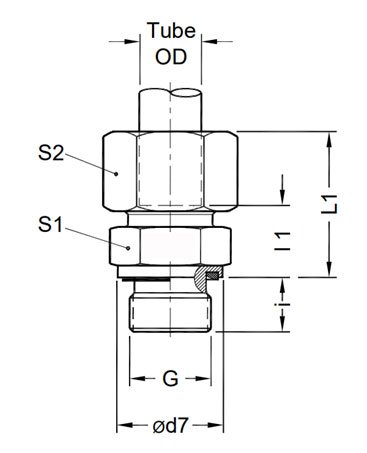

Part No.	Series	Tube OD	G Male BSP Thread	Ø d7	i	l 1	L1	S1	S2
J06PLJ	Light L 250 bar	6	G 1/8 A	14	8	8.5	24	14	14
J08PLJ		8	G 1/4 A	19	12	10	25	19	17
J10PLJ		10	G 1/4 A	19	12	11	26.5	19	19
J12PLJ		12	G 3/8 A	22	12	12.5	27.5	22	22
J15PLJ		15	G 1/2 A	27	14	14	30	27	27
J18PLJ	160 bar	18	G 1/2 A	27	14	14.5	31.5	27	32
J22PLJ	160 bar	22	G 3/4 A	32	16	16.5	33.5	32	36
J28PLJ	100 bar	28	G 1 A	40	18	17.5	35.5	41	41
J35PLJ		35	G1 1/4 A	50	20	17.5	40.5	50	50
J42PLJ		42	G1 1/2 A	55	22	19	42.5	55	60
J06PSJ	Heavy S 630 bar	6	G 1/4 A	19	12	13	28.5	19	17
J08PSJ		8	G 1/4 A	19	12	15	30	19	19
J10PSJ		10	G 3/8 A	22	12	15	32	22	22
J12PSJ		12	G 3/8 A	22	12	17	33.5	22	24
J16PSJ	400 bar	16	G 1/2 A	27	14	18.5	37.5	27	30
J20PSJ		20	G 3/4 A	32	16	20.5	43	32	36
J25PSJ		25	G 1 A	40	18	23	48	41	46
J30PSJ	250 bar	30	G1 1/4 A	50	20	23.5	51.5	50	50
J38PSJ	250 bar	38	G1 1/2 A	55	22	26	57.5	55	60

Hydraulic Male Stud Coupling Male Metric (M) Thread with Elastomeric Seal

Part No.	Series	Tube od	M Male Metric Thread	Ø d7	i	l 1	L1	S1	S2
J06PLME	Light L 250 bar	6	M10 x 1.0	14	8	8.5	24	14	14
J08PLME		8	M12 x 1.5	17	12	10	25	17	17
J10PLME		10	M14 x 1.5	19	12	11	26.5	19	19
J12PLME		12	M16 x 1.5	22	12	12.5	27.5	22	22
J15PLME		15	M18 x 1.5	24	12	13.5	29.5	24	27
J18PLME	160 bar	18	M22 x 1.5	27	14	14.5	31.5	27	32
J22PLME	160 bar	22	M26 x 1.5	32	16	16.5	33.5	32	36
J28PLME	100 bar	28	M33 x 2.0	40	18	17.5	35.5	41	41
J35PLME		35	M42 x 2.0	50	20	17.5	40.5	50	50
J42PLME		42	M48 x 2.0	55	22	19	42.5	55	60
J06PSME	Heavy S 630 bar	6	M12 x 1.5	17	12	13	28.5	17	17
J08PSME		8	M14 x 1.5	19	12	15	30	19	19
J10PSME		10	M16 x 1.5	22	12	15	32	22	22
J12PSME		12	M18 x 1.5	24	12	17	33.5	24	24
J16PSME	400 bar	16	M22 x 1.5	27	14	18.5	37.5	27	30
J20PSME		20	M27 x 2.0	32	16	20.5	43	32	36
J25PSME		25	M33 x 2.0	40	18	23	48	41	46
J30PSME	250 bar	30	M42 x 2.0	50	20	23.5	51.5	50	50
J38PSME	250 bar	38	M48 x 2.0	55	22	26	57.5	55	60
