Approx Price:
Size in (mm): 50mm, 65mm, 80mm, 100mm, 125mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm
Size (Inches): 1 1/2 Inch, 2 Inch, 2 1/2 Inch, 3 Inch, 4 Inch, 6 Inch, 8 Inch, 10 Inch, 12 Inch, 14 Inch, 16 Inch, 18 Inch, 20 Inch, 24 Inch
Product Standard: Face to Face & Flange Dimensions as per IS:780
Description: Bolted Bonnet, Inside Screw & Non Rising Stem
Pressure / Class / Rating: PN10

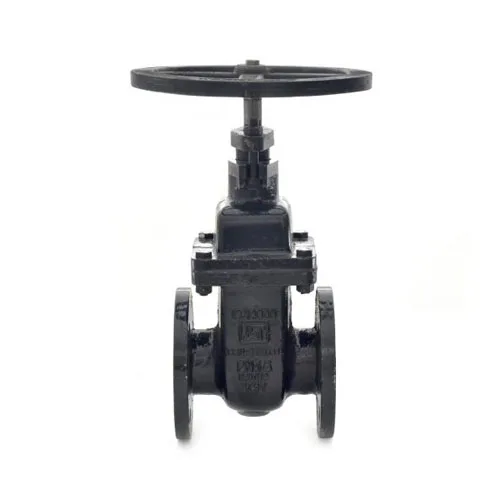

| Material Specification – Cast Iron Wedge Gate Sluice Valve | ||
| P. NO. | NAME OF PART | MATERIAL |
| 1 | BODY | CAST IRON (IS 210 Gr. FG 200) |
| 2 | BODY RING | GUN METAL (IS 318 Gr. LTB2) |
| 3 | WEDGE | CAST IRON (IS 210 Gr. FG 200) |
| 4 | WEDGE RING | GUN METAL (IS 318 Gr. LTB2) |
| 5 | WEDGE NUT | GUN METAL (IS 318 Gr. LTB2) |
| 6 | BOLTS & NUTS | CARBON STEEL (IS 1363 CLASS 4 & 4.6) |
| 7 | GASKET | RUBBER (IS 638 TYPE B) |
| 8 | STEM | S.S. (IS 6603)/BRASS (IS 6912 Gr. FHTB1) |
| 9 | BONNET | CAST IRON (IS 210 Gr. FG 200) |
| 10 | BOLTS & NUTS | CARBON STEEL (IS 1363 CLASS 4 & 4.6) |
| 11 | GASKET | RUBBER (IS 638 TYPE B) |
| 12 | STUFFING BOX | CAST IRON (IS 210 Gr. FG 200) |
| 13 | PACKING | HEMP & JUTE (IS 5414) |
| 14 | GLAND | CAST IRON (IS 210 Gr. FG 200) |
| 15 | T-BOLT & NUTS | CARBON STEEL (IS 1363 CLASS 4 & 4.6) |
| 16 | HAND WHEEL | CAST IRON (IS 210 Gr. FG 200) |
| 17 | WASHER | CARBON STEEL |
| 18 | SCREW FOR HAND WHEEL | CARBON STEEL |
| 19 | THRUST PLATE | CAST IRON (IS 210 Gr. FG 200) |
