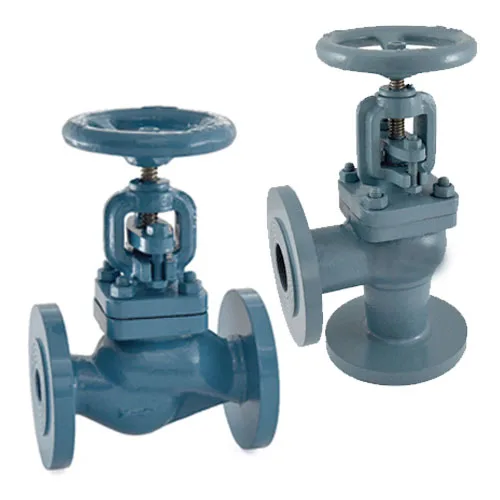

Cast Iron Globe Steam Stop Valve

Cast Iron Globe Steam Stop Valves are engineered for efficient control and regulation of steam and water flow in industrial applications. Designed with precision and durability in mind, these valves are available in both Straight Pattern (Flanged) and Angle Pattern (Flanged) configurations to meet diverse operational needs.

Key Features of Cast Iron Globe Steam Stop Valves

1. High-Quality Materials:
   • Constructed from premium-grade Cast Iron, ensuring longevity and resistance to wear and tear.
   • Features renewable 13% Cr. Stainless Steel (S.S 410) working parts for enhanced corrosion resistance and durability.
2. Design Excellence:
   • Flanged Ends conform to DIN 2533 PN 16RF, making them suitable for robust industrial piping systems.
   • Equipped with an Outside Screw and Yoke Type mechanism, ensuring ease of maintenance and smooth operation.
   • Rising Stem Design provides a clear visual indicator of valve status.
3. Operational Efficiency:
   • Streamlined body design ensures minimum pressure drop, maximizing flow efficiency.
   • The high lift of the seat eliminates flow obstruction, enabling seamless operation even under demanding conditions.
   • Comes with a sturdy and oversized handwheel, offering sufficient torque for effortless operation.
4. Maintenance Features:
   • Designed with a provision for re-packing under pressure, ensuring hassle-free servicing without interrupting operations.
5. Temperature and Pressure Tolerance:
   • Test Pressure (Hydrostatic):
     • Shell: 26 kg/cm²g (370 psig).
   • Working Pressure (Steam): 13 kg/cm²g (185 psig).
   • Maximum Working Temperature: 220°C.
6. Versatility:
   • Suitable For: Handling steam and water in a wide range of industries, including pharmaceuticals, chemical processing, food and beverage, and HVAC systems.

Size Range

These valves are available in both imperial and metric sizes to cater to various piping requirements:

• Inches: 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″, 6″.
• Metric: 15mm, 20mm, 25mm, 32mm, 40mm, 50mm, 65mm, 80mm, 100mm, 150mm.

Applications of Cast Iron Globe Steam Stop Valves

1. Steam Systems: Efficiently controls steam flow in industrial boilers, heaters, and pipelines.
2. Water Distribution: Manages water flow in cooling systems and other water-based applications.
3. Industrial Facilities: Used in industries like chemical processing, power plants, HVAC systems, and pharmaceutical manufacturing.

Why Choose Our Cast Iron Globe Steam Stop Valves?

• Compliance with Standards: Manufactured to meet international standards for safety and quality.
• Customizable Options: Available in Straight and Angle patterns to suit your specific piping layout.
• Proven Reliability: With a robust design and high-pressure tolerance, these valves are ideal for high-demand applications.

Enhance your operational efficiency with our high-performance Cast Iron Globe Steam Stop Valves. Whether you need precision control or long-term reliability, these valves are the perfect choice for your industrial steam and water systems. Contact us today for a customized solution!
