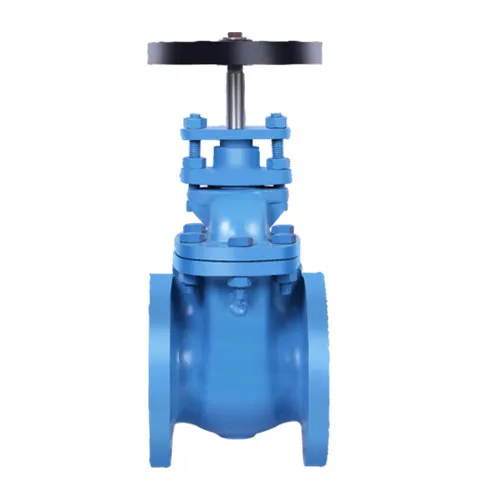

Cast Iron Gate Valve Flanged

Approx Price:

Category: Gate Valves / Sluice Valves, Valves

Size in (mm): 50mm, 65mm, 80mm, 100mm, 125mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm
Size (Inches): 1 1/2 Inch, 2 Inch, 2 1/2 Inch, 3 Inch, 4 Inch, 6 Inch, 8 Inch, 10 Inch, 12 Inch, 14 Inch, 16 Inch, 18 Inch, 20 Inch, 24 Inch
Description: Bolted Bonnet, inside screw, Non-Rising Stem, Rising Stem
End Connection: Flanged as per ASME / ANSI B16.1 Class 125 F.F.
Application: Potable Water, Treated Fresh Water, Neutral Liquids & Some Gases

Cast Iron Gate Valve Flanged – Material Specification
P. NO.	NAME OF PART	MATERIAL	SPECIFICATION
1	BODY	CAST IRON	BSEN 1561 Gr.ENGJL 200
2	STEM NUT	CAST IRON	BSEN 1561 Gr.ENGJL 200
3	WEDGE	CAST IRON	BSEN 1561 Gr.ENGJL 200
4	GASKET	C.N.A.F	B.S. 1832
5	BONNET	CAST IRON	BSEN 1561 Gr.ENGJL 200
6	BOLTS & NUTS	CARBON STEEL	BS 4190
7	T-HEAD BOLTS & NUTS	CARBON STEEL	BS 4190
8	GASKET	C.N.A.F	B.S. 1832
9	STUFFING BOX	CAST IRON	BSEN 1561 Gr.ENGJL 200
10	PACKING	TO SUIT SERVICE CONDITIONS
11	GLAND FLANGE	CAST IRON	IS 2062 Gr. A
12	STEM	CARBON STEEL	IS 2062 Gr. B
13	HAND WHEEL	CAST IRON	BSEN 1561 Gr.ENGJL 200
14	WASHER	CARBON STEEL	ANY GRADE
15	BOLT FOR HAND WHEEL	CARBON STEEL	BS 4190

Our Cast Iron Gate Valve (Non-Rising Spindle) is designed for applications requiring infrequent operation, where the wedge remains either fully open or fully closed. It ensures reliable performance in systems where minimal pressure drop is critical.

Key Features:

Robust Design: Bolted bonnet with an inside screw and non-rising stem for durability.
Efficient Sealing: Solid wedge with metal-to-metal seating ensures leak-proof operation.
Optimized Flow: Full-bore design minimizes pressure drop for efficient fluid movement.
Flanged Ends: Conforms to ASME B16.1 CL-125 standards for secure pipeline integration.
Smooth Operation: Requires minimal torque for opening and closing.
Reliable Packing: Non-asbestos packing for secure sealing and flexible operation.
Durable Handwheel: Open-spoke design for easy handling and enhanced strength.
Repacking Capability: Can be repacked under pressure without removal.
Visual Position Indicator: Marked handwheel for easy identification of valve status.
Versatile Operation: Available with manual, gear, electric, and pneumatic actuators.
Customization Options: Open-shut indicators and locking mechanisms available on request.
Application Areas: Ideal for water distribution systems, power plants, and pipeline networks for controlling flow.
