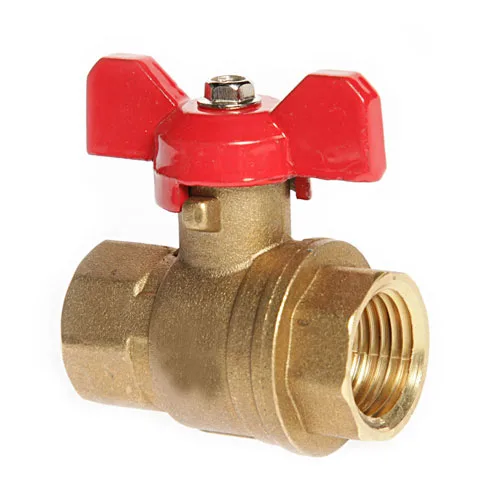

Brass Ball Valve with T Handle

Approx Price:

Size in MM: 15mm, 20mm, 25mm
Size in Inches: ½ Inch, ¾ Inch, 1 Inch
Body Material cum standard : Forged Brass
Design: Two piece design ‘T’ Handle Operated
End Details : Screwed female BSP Parallel Threads
Body Test Pressure : 40kg/cm²g (Hyd.)
Working Pressure : 25kg/cm²g (Hyd.)

Brass Ball Valve with T Handle – PN-25 Forged Brass Valve with Renewable PTFE Seats

Our Brass Ball Valve with T Handle is designed for reliable and long-lasting performance, ensuring secure control over fluid flow in a wide range of applications. This high-quality valve is ideal for both industrial and domestic use, offering excellent durability and versatility.

Key Features:

Pressure Rating: PN-25 for reliable performance in high-pressure systems.
Body Material: Constructed from forged brass, ensuring strength and corrosion resistance for extended service life.
Design: Features a two-piece design with a T-handle operated mechanism, offering ease of operation and smooth flow control.
Seat Type: Equipped with renewable PTFE seats, designed to withstand high pressures and provide leak-proof sealing.
Ball Material: The ball is made of brass and nickel-plated to prevent corrosion, ensuring smooth operation and durability.
Stem Material: Machined brass (nickel-plated) stem, providing superior strength and resistance to wear.
Packing: Features PTFE packing, ensuring a leak-free and reliable sealing performance.
Port Opening: Full bore port opening for enhanced flow capacity and minimal pressure drop.
End Connection: Comes with screwed female BSP parallel threads for secure installation.
Body Test Pressure: 40kg/cm²g (Hyd.), ensuring the valve can handle extreme conditions without failure.
Working Pressure: Rated at 25kg/cm²g (Hyd.), ideal for most hydraulic applications.
Size Options: Available in a range of sizes:
- 15mm, 20mm, 25mm (metric sizes)
- ½ inch, ¾ inch, 1 inch (imperial sizes)

This brass ball valve is a reliable solution for controlling the flow of liquids and gases in plumbing, industrial, and HVAC systems. It offers exceptional performance and is designed to withstand challenging environments, making it an essential choice for your valve requirements.

Applications:

Industrial piping systems
Water treatment plants
HVAC systems
Oil & gas pipelines
Chemical and petrochemical industries
Plumbing and irrigation systems

Choose our Brass Ball Valve with T Handle for robust construction, high-performance reliability, and ease of use in demanding applications. With its high-quality materials and innovative design, this valve ensures maximum functionality and efficiency.
